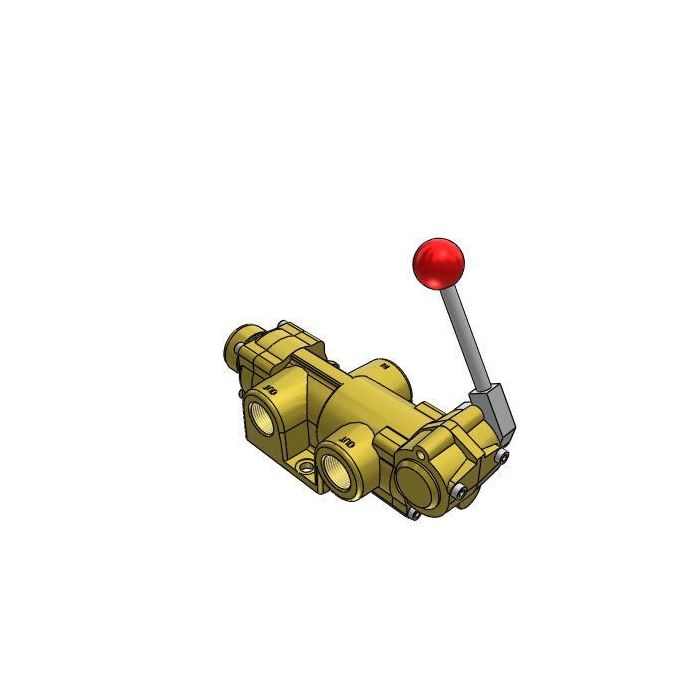

Valve, Diverter, Brass
SKU:
VZH-7602-WS
Lead time: 10
Valve, Diverter, Brass
Versa V Series Directional Control Valve
The VERSA 1" brass V Series valves are suited for nearly all pneumatic directional control applications. The V Series is designed for trouble-free performance even in the harshest environments. The integrity of design makes them adaptable to a maximum number of applications with a minimum number of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for a valve in many cases. The modular approach to this valve design makes thousands of valve variations possible, allowing the customer to "build" his valve to fit his unique specifications.
Product Features
- Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
- Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range
100% Leak Tested • 10-Year Warranty
| Actuation | Hand Lever-Offset | Detent |
|---|---|
| Function | Diverter (1 inlet-2 outlets), 2-pos [7way] |
| Port Size | Body Ported, 3/4" NPT |
| Valve Pressure Range (PSI) | 0-100 psi |
| Valve Pressure Range (BAR) | 0-6.90 bar |
| Primary Flow | 9.7 Cv |
| Media | Water |
| Temperature Range (F) | 5°F to 200°F |
| Temperature Range (C) | -15°C to 93°C |
| Body & Internal Parts | Brass |
| Weight | 11.780000 |
