ENGINEERED FOR EXTREME PRESSURES RELIABLE FILTRATION IN THE HARSHEST ENVIRONMENTS
High Pressure Filters

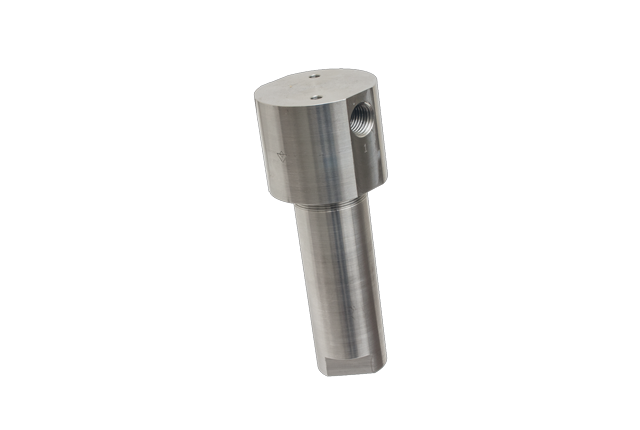

The VERSA AFH-316 Series High Pressure Filter is purpose-built to handle the most demanding filtration applications. Designed to withstand input pressures up to 6000 psi, this rugged filter is ideal for use in high-pressure pneumatic systems, including pipelines, offshore platforms, and sour gas operations. Available in ¼” NPT inline mounting configurations—with or without an additional outlet port in the cap—the AFH-316 provides maximum flexibility for system integration.
Crafted from corrosion-resistant 316L stainless steel and available with either polyethylene or 316 stainless steel filter elements, this filter is engineered to protect downstream equipment from contamination and ensure long-term system performance, even in corrosive or hazardous environments.
Key Features
Engineered to deliver reliable performance where failure is not an option, this valve combines strength, flexibility, and durability to meet the toughest application requirements. From handling extreme pressures to withstanding corrosive environments, every detail is designed with real-world demands in mind. Whether installed in offshore systems, sour gas applications, or high-pressure pipelines, this valve provides long-lasting service, ease of use, and dependable operation.
High Pressure Capability
The valve is rated for up to 6000 psi input, making it suitable for the most demanding applications.
Durable Construction
Its 316L stainless steel housing provides superior corrosion resistance and long service life.
Flexible Mounting Options
The valve is available with ¼” NPT inline connections or an inline version with an extra outlet port for added versatility.
Element Choices
Users can select from polyethylene or stainless steel filter elements to meet specific application requirements.
Reliable in Harsh Environments
This valve is designed to perform in offshore, sour gas, and pipeline systems, ensuring dependable operation in the toughest conditions.
Standard Specifications- Polyethylene
| Construction | Stainless Steel body |
| Seal Material | FKM |
| Filter Element | Polyethylene |
| Actuation | Air Filter With Polyethylene Element & Side Ports |
| Media | Air - Inert Gas, Natural Gas |
| Port Size | 1/4" NPT |
| Flow | 0.073 Cv |
| Pressure Range | 0-6000 psi (0-413.7 bar) |
| Temperature Range (F) | -4°F to 180°F (-20°C to 82°C) |
| Filter Microns | 10 or 25 |
Standard Specifications- Stainless Steel
| Construction | Stainless Steel body |
| Seal Material | FKM |
| Filter Element | Stainless Steel |
| Actuation | Air Filter With Stainless Steel Element & Side Ports |
| Media | Air - Inert Gas, Natural Gas |
| Port Size | 1/4" NPT |
| Flow | 0.073 Cv |
| Pressure Range | 0-6000 psi (0-413.7 bar) |
| Temperature Range (F) | -4°F to 248°F (-20°C to 120°C) |
| Filter Microns | 3, 10 or 25 |
